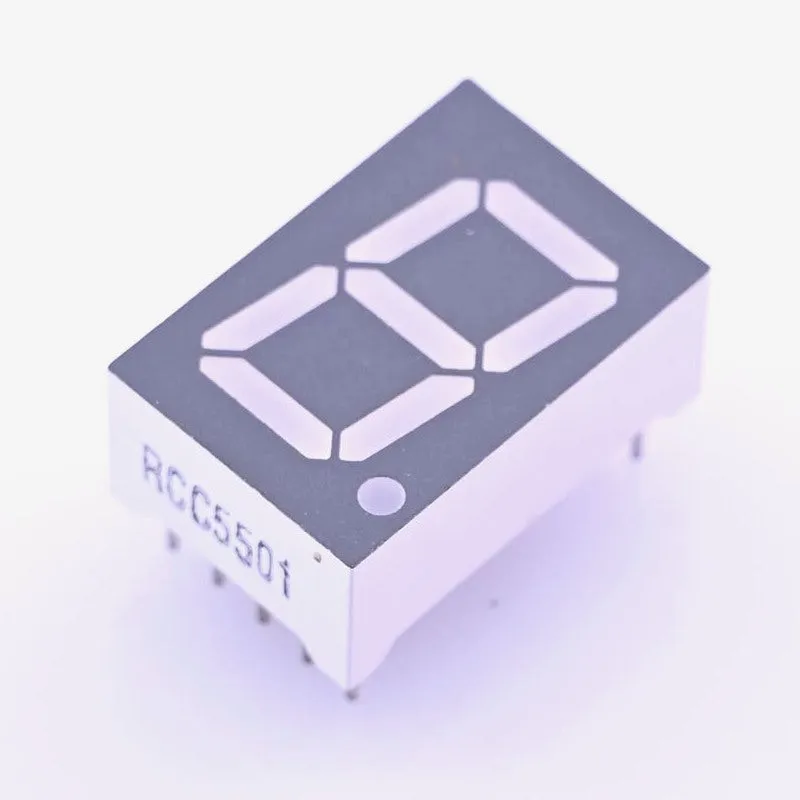

This is a 13 mm single character 0.56 inch 7-segment common cathode display. It is designed such that all the cathode pins of the LEDs are connected to ground. The viewing distance can be up to 7m and the display color is red. Alternative to this, is the .

Pin Description of the 7-Segment Display

Specifications of the seven segment common cathode

• Evenly lighted segments
• Common- Cathode Circuitry
• Color : Red
• Wide Viewing angle, ± 50 ° angle
• Luminous intensity: 2800 to 9000 ucd
• Wavelength: 612 to 625 nm
• Typical forward voltage : 2V
• Current Consumption : 30mA/segment
• Peak Current :70mA
• Package: 13mm

Additional Resources

Package Includes

1 x 7-Segment Display (Common Cathode) - Red
