Product Details

Note: The product includes with White skin (Installed).

and batteries are not included.

The pretty skin not only makes it more popular with children but also effectively protects the core circuit from damage. If you only need the skin,

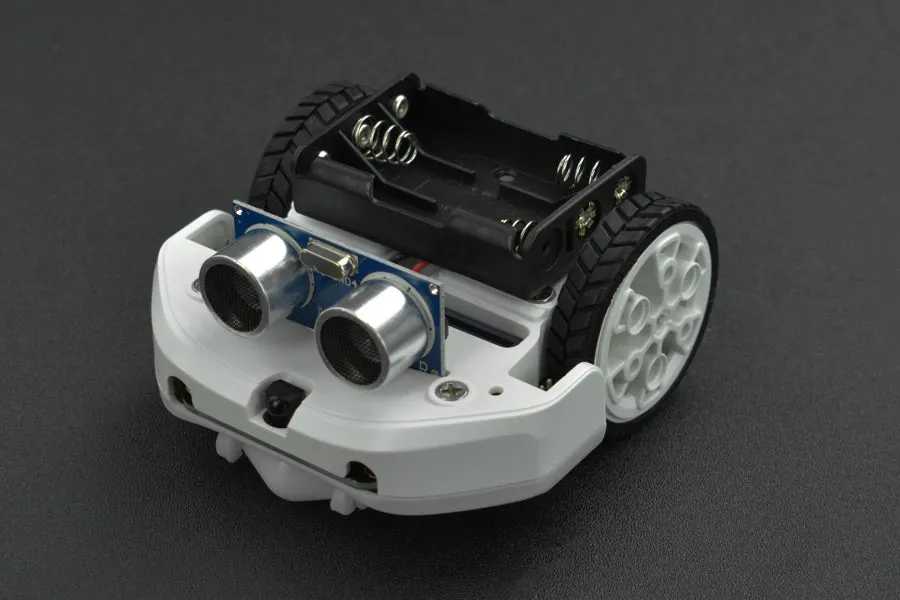

Maqueen Lite is a STEAM educational programming robot. Despite a mini-body, it comes with an exquisite appearance and inherits the playability and simple operation of micro:bit. Besides, there are housings with four lively colors red, green, blue, and gray designed for Maqueen Lite, which makes it more popular with kids.

Maqueen Lite works well with both micro:bit V1 and V2, and integrates rich peripherals like ultrasonic ranging sensor, IR receiver, IR line-tracking sensor, LED car lights, RGB ambient lights, etc.

Suggest Age: 8

Maqueen is accessible to now. Mind is a graphical programming platform from DFRobot, supporting Python, Arduino, and other programming platforms. At present, Mind has been applied to all kinds of sensors, modules, and related educational products.


We recommend that students choose micro: Maqueen Lite with skin, easier to operate. Motors, vehicle wheels, support wheel, skin, and battery holder has been installed before delivery.

This kit includes a track map, more suitable for teaching.


The Differences between

micro: Maqueen Lite with skin & micro: Maqueen Lite

Product
Installed

(Parts and skin has been installed before delivery)

×

(Spare Parts)

Map

×

Color


/ / /

Not selectable


LED Light Flash and RGB Breathing Ambient Light:


Light-operated Sprite:


Line Tracking:

Features:

  • Exquisite appearance and lively colors, popular with kids
  • No need to install, get started in minutes
  • Latest Maqueen 4.2 core, stable and steady performance
  • Support micro:bit V1 and V2 and Maqueen Mechanic Kit
  • Applications:

  • STEM Education
  • Specification:

    Maqueen Lite:

  • Supply Voltage: 3.5V~5V DC ( Three AAA batteries
  • Infrared Line-tracking Sensor (High/low level) x 2
  • Buzzer x 1
  • Infrared Receiver (NEC encode) x 1
  • LED Car Lights (High/low-level control) x 2
  • RGB Ambient Light (Full 16 million colors) x 4
  • SR04 Ultrasonic Interface (5V) x 1
  • I2C (3.3V) x 1
  • Servo Port (S1 S2) x 2
  • Gravity Expansion Port (P0, P1, P2) x 3
  • N20 Metal Gear Motor x 2
  • Motor Reduction Ratio: 1:150
  • Maximum Rotate Speed: 133 rpm
  • Motor Drive Mode: PWM
  • Support Wheel Material: POM
  • Vehicle Wheel Material: ABS
  • Tyre Material: eco-friendly rubber
  • Programming Method: MakeCode, Mind
  • Dimension: 81x 85 x 44mm/3.19 x 3.35 x 1.73” (micro:bit not included)
  • Weight: 75.55g (Battery, micro:bit, and peripheral accessories not included)

  • Skin (Installed):

  • Skin Material: eco-friendly ABS
  • Weight: 60g
  • Color: White
  • Documents:

  • Product Includes:

  • Maqueen Lite Vehicle Body x1
    (Note: Motors, vehicle wheels, support wheel, skin, and battery holder have been installed before delivery)
  • H-SR04 Ultrasonic Sensor x1
  • Line-tracking Map x1
  • micro: Maqueen Lite with Skin (White) - micro:bit Educational Programming Robot Platform
