Features:

• 26.5 GHz, 50 Ω, Dual 6x1 (SP6T) PXI RF Multiplexer Switch Module
• Number of Banks: 2
• Channels: 6
• Maximum carry current (per channel) 1.73 Arms
• Maximum RF carry power (50 Ω load) 150 W
• Minimum switch load -35 dBm
• Characteristic impedance (Z0) 50 Ω, nominal

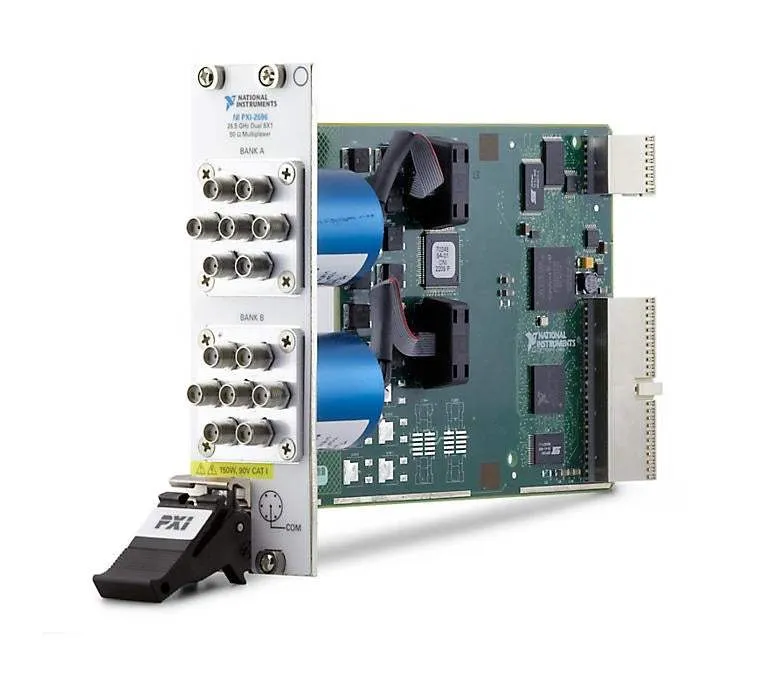

The National Instruments PXI-2596 is an RF signal multiplexer switch with dual 6x1 multiplexer banks in the same module. It is ideal for passing high-order harmonics from PXI RF Signal Upconverter modules or routing multiple sources to PXI RF Signal Downconverter modules. You can use the PXI-2596 onboard relay count tracking feature to predict relay lifetime and reduce unexpected system downtime.
