Renogy 400 Watt 12 Volt Solar RV Kit
Renogy 400 Watt 12Volt Solar RV Kit is a comprehensive package to supply your RV with sustainable energy to help dock and park your entertainment zone without a power hookup. Tapping into the abundantly available, inexhaustible sunlight, Renogy Solar RV Kit brings greater freedom to your outdoors.

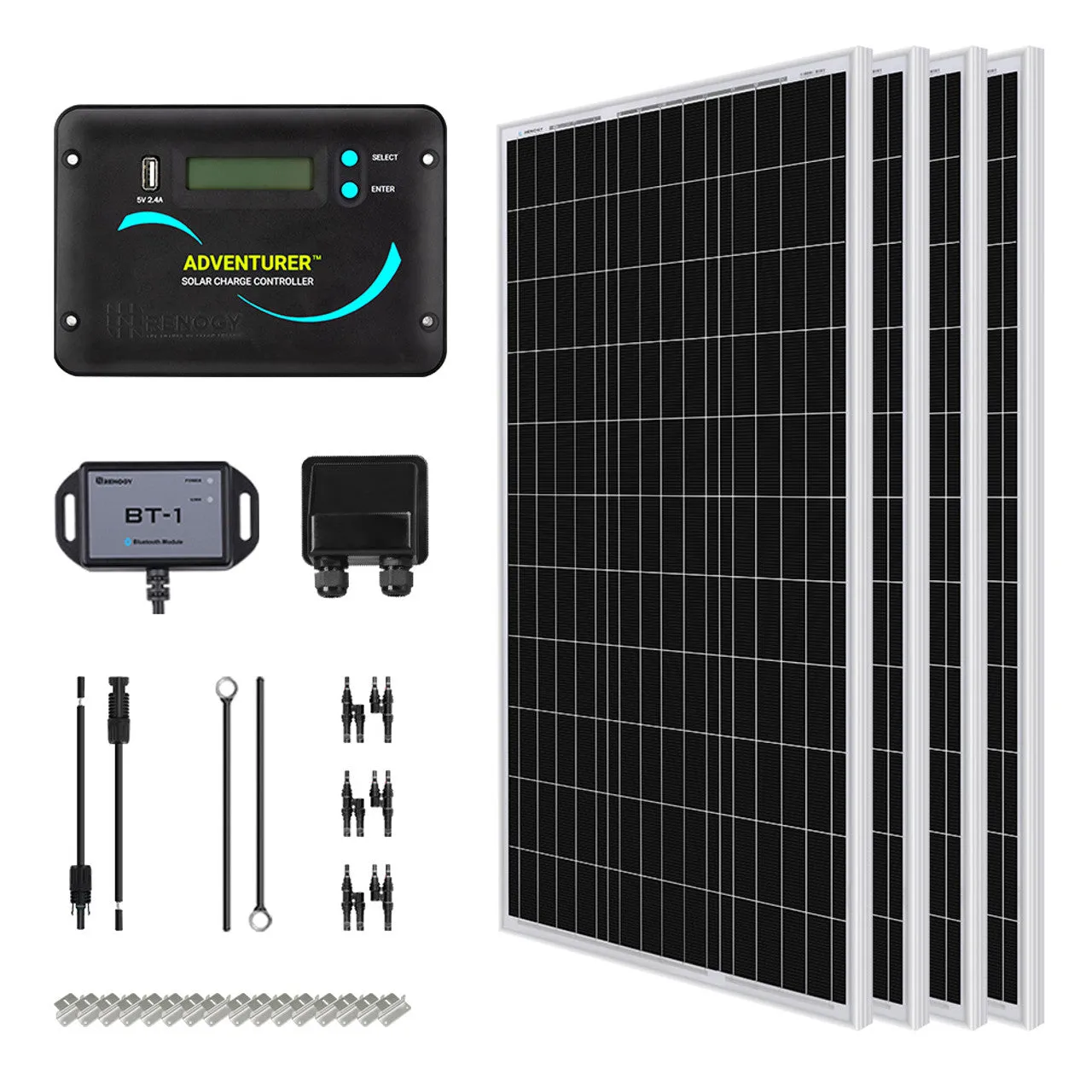

A complete kit of 4 solar panels, charge controller, adaptor kit, tray cable, branch connectors, Bluetooth module and cable entry housing ensure your installed solar panels blend in with your RV aesthetics and the entire set up is negative grounded for battery compatiblity.
The intuitive LCD screen displays real time data allowing you to control parameter settings. The control comes embedded with self-diagnostics and electronic protection to keep the panels protected from faulty installation or system goof ups.
Our newly added Bluetooth module allows you to view and make real-time changes in parameters via smartphone app DC home.
Highlights:
- High-efficiency Monocrystalline Silicon 21% cell conversion
- Bypass diodes for optimal performance in low-light conditions
- Guaranteed no hot-spot heating
- IP65 Rated for protection against low pressure water jets
- Durable Corrosion-resistant aluminum frame
- 4 stage battery charging process for rapid charging
- Remote monitor and control via Bluetooth
Specifications:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs

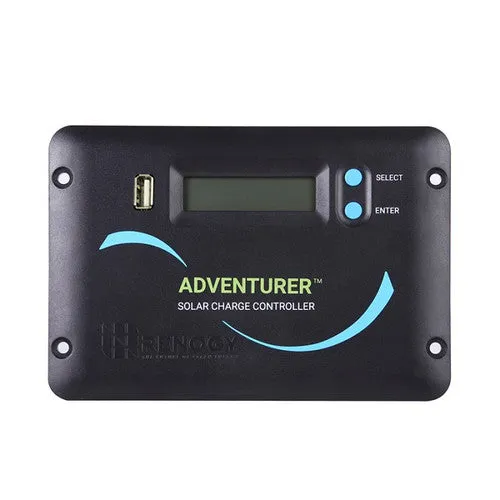

RENOGY ADVENTURER - 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER WITH LCD DISPLAY
Nominal Voltage: 12V/24V Auto Recognition
Rated Charging Current: 30A
Battery Type(s): Sealed (AGM), Gel, Flooded, and Lithium
Max. PV Input Power: 400W at 12VDC
Max. PV Input Voltage: 50 VDC
Operating Temperature: -13F to 131F
Overall Dimension: 6.56 x 4.50 x 1.90 in
Weight: 0.6lb
RENOGY 16FT 10AWG TRAY CABLES (A PAIR)
Length: 16ft
AWG: 10
Rating Voltage: 600V
Temperature: -40°F to 185°F
RENOGY 30FT 10AWG SOLAR ADAPTOR KIT (A PAIR)
Length: 30ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to 185°F

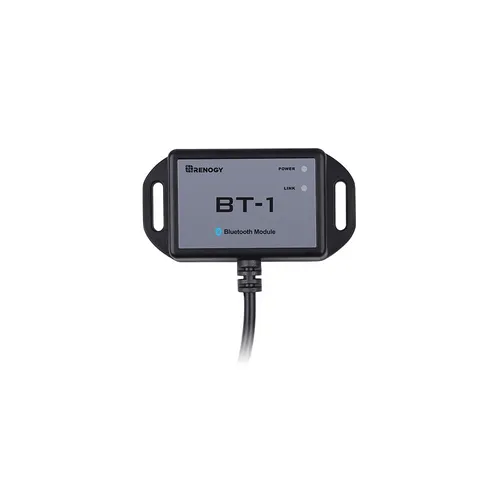

RENOGY BT-1 BLUETOOTH MODULE
Standby Power Consumption: 0.04W
Communication Range: ≤15m
Dimensions: 2.6 X 2.01 X 0.61 In
Max. PV Input Power: 400W (12V)
RENOGY SOLAR Y BRANCH CONNECTORS
Withstanding Voltage: 1000V DC(TUV), 600V(UL)
Protection Degree: IP67, mated
Wiring Size Range: 10, 12, 14 AWG
Temperature: -40°F to 194°F
RENOGY CABLE ENTRY HOUSING
Material: UV-resistant ABS Plastic
Weight (each component): 7.9 oz.
Recommended Adhesive: Sikaflex 252 or alike
Dimensions (L x W x H): 4.7 x 3.9 x 2.0 in
Cable Gland Diameter Range: 6mm – 12mm

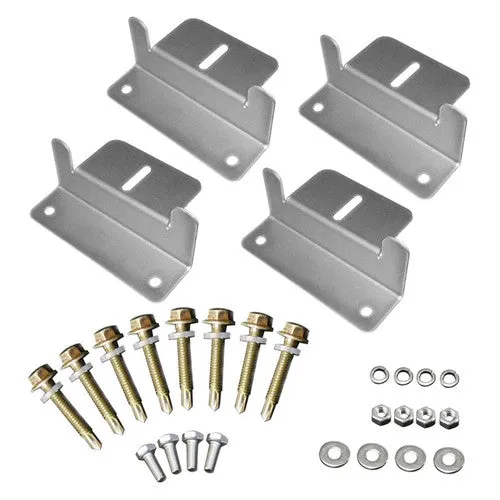

MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
What's in the Box:
1 x 100W Mono Solar Panel
1 x Renogy Adventurer 30A PWM Charge Controller
1 x Renogy Cable Entry Housing
1 x Renogy 30ft. 10AWG Solar Adaptor Kit
1 x Renogy 16ft. 10AWG Tray Cables
3 x Renogy Solar Y Branch Connectors
4 x Mounting Z Brackets
1 x Renogy BT-1 Bluetooth Module
1 x User Manual
